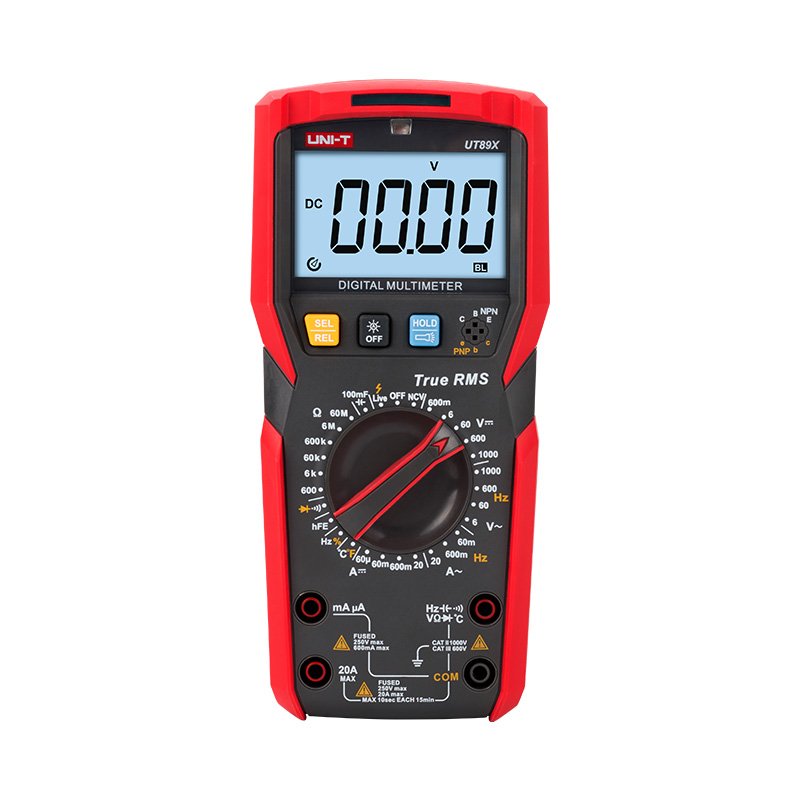

UNI-T UT89XD True RMS Professional Digital Multimeter with LED Tester

The UNI-T UT89XD Professional Digital Multimeter is a rugged, 6000-count True RMS multimeter engineered for solar technicians, electrical contractors, and electronics repair specialists in Pakistan. Uniquely equipped with a dedicated high-voltage LED test output (up to 12V), it can test single LEDs and entire LED strips with automatic polarity and forward voltage identification.

Key Features & Technical Specifications:

• Voltage Range: Up to 1000V DC and 1000V AC True RMS.
• Current Range: 20A AC and 20A DC with fuse overload protection.
• Specialized LED Tester: Outputs up to 12V / 5mA to test single LEDs, backlight strips, and solar LED luminaires.
• Massive Capacitance Range: Tests large capacitors up to 100mF (100,000µF) in inverter power boards.
• Dual-Range NCV: High/Low sensitivity non-contact voltage sensor with live wire acoustic-optic feedback.
• Heavy-Duty Durability: Dual-injection molded shock-absorbing shell tested to survive a 1-meter drop test.
• Built-in Flashlight & LCD Backlight: Auto-sensor backlight and bright rear torch for poorly lit solar installation rooms.
